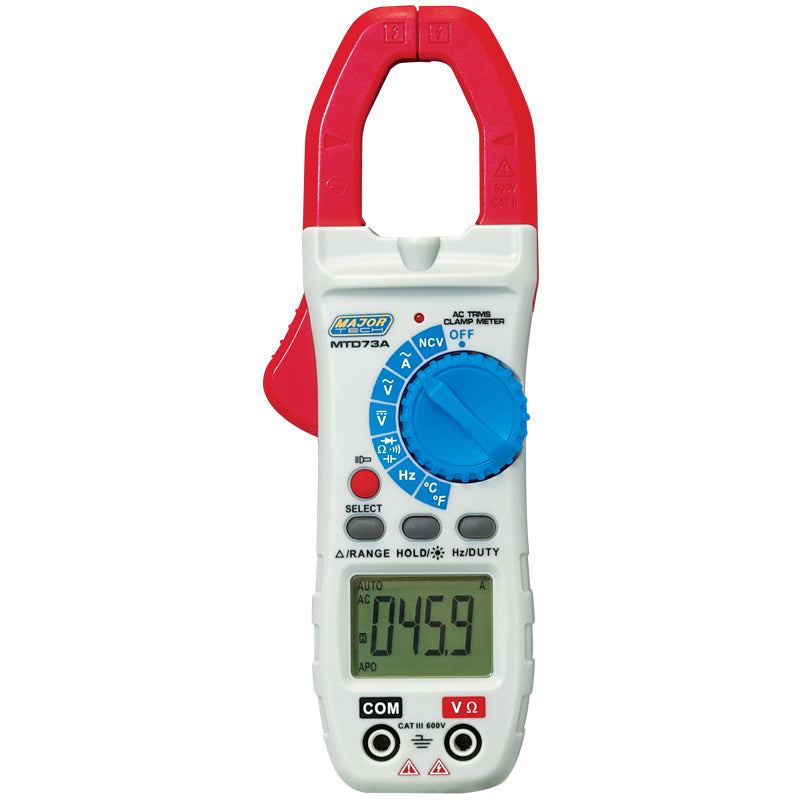

Major Tech MTD73A Clamp Meter TRMS 800A CAT III 600V
Major Tech MTD73A Clamp Meter TRMS 800A CAT III 600V
The Major Tech MTD73A is a professional True RMS clamp meter engineered to measure AC current up to 800A without breaking the electrical circuit. Designed for versatile diagnostics, it accurately measures AC/DC voltage, resistance, capacitance, frequency, duty cycle, and temperature with high-precision True RMS processing.
Equipped with a 28mm jaw opening and a clear 4000-count backlit LCD, this robust meter ensures seamless operation in tight panels and low-light environments. Essential functions such as data hold, continuity buzzer, auto power off, and a CAT III 600V safety rating provide dependable performance for electrical testing.
Key Features
| Brand | Major Tech |
| Product Type | Clamp Meter |
| Safety Rating | CAT III 600V |
| AC Current Range | 800 A |
| AC Current Resolution | 100 mA |
| Conductor Size | 28 mm |
| Display | 4000 count LCD with backlight |
| Measurement Functions | AC Current, AC Voltage, DC Voltage, Temperature, Capacitance, Frequency, Resistance, Duty Cycle |
| Continuity Buzzer | Yes |
| Data Hold | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Weight | 300 g |
Highlights
- Measures AC Current, AC Voltage, DC Voltage, Temperature, Capacitance, Frequency and Resistance
- Measures AC current to 800 Amps without breaking the circuit
- Resolution to 100mA AC Current
- 28mm conductor size
- 4000 count LCD display with backlight
- Continuity and buzzer test
- Data hold and Duty Cycle function
- Auto power off
- Low battery indication
- CAT III 600V
How to use
Select the desired measurement function using the rotary dial. For current measurements, clamp the jaw around a single live conductor up to 28mm in size. Use the integrated test leads for measuring voltage, resistance, capacitance, frequency, or temperature, and reference the backlit LCD screen for precise readings.
