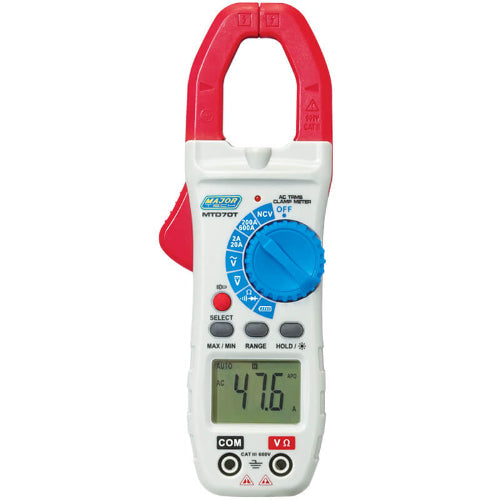

Major Tech MTD70T AC TRMS Clamp Meter 600A CAT III 600V
Major Tech MTD70T AC TRMS Clamp Meter 600A CAT III 600V
The Major Tech MTD70T is a versatile True RMS AC clamp meter engineered for reliable electrical testing and troubleshooting. Featuring a 28mm jaw opening, it accurately measures AC current up to 600A as well as AC and DC voltage up to 600V with high precision.
Equipped with a 2000-count backlit LCD screen, non-contact voltage detection, and resistance measurement up to 20MΩ, this tool provides essential functionality for electricians and technicians. Integrated data hold, auto power off, and continuity testing deliver both efficiency and safety in CAT III 600V environments.
Key Features
| AC Current Range | 600A |
| AC/DC Voltage Range | 600V |
| Resistance Range | 20MΩ |
| Conductor Size | 28mm |
| Display | 2000 count LCD with backlight |
| Continuity Test | Yes |
| Data Hold | Yes |
| Non-Contact Voltage | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Weight | 200 g |
| Brand | Major Tech |
| Product Type | Clamp Meter |
Highlights
- Measures AC Current to 600A
- Measures AC & DC Voltage to 600V
- Resistance to 20MΩ
- 28mm conductor size
- 2000 count LCD display with backlight
- Continuity and buzzer test
- Data hold functions
- Non-Contact Voltage
- Auto power off
- Low battery indication
How to use
Select the desired measurement function using the rotary dial. For current testing, open the clamp jaw and encircle a single conductor. Use the test leads for AC/DC voltage, resistance, and continuity checks.
