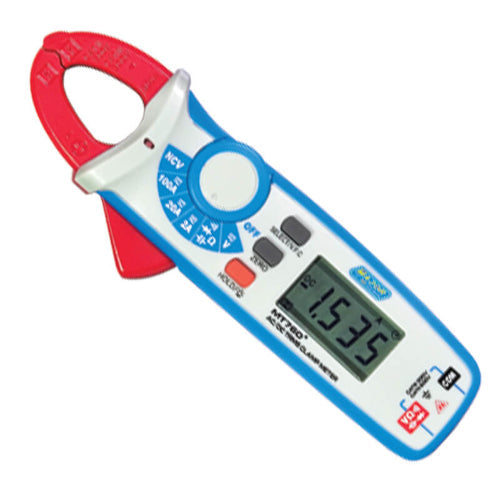

Major Tech MT760 AC/DC TRMS Clamp Meter CAT III 300V 100A
Major Tech MT760 AC/DC TRMS Clamp Meter CAT III 300V 100A
The Major Tech MT760 AC/DC TRMS Clamp Meter delivers highly accurate electrical testing with True RMS capability. Designed to measure AC and DC current up to 100A starting from 1mA, this compact instrument also tests voltage up to 600V and capacitance up to 20mF.
Featuring a 17mm clamp jaw, integrated non-contact voltage detection, and VFC measurement for variable frequency drives, it ensures dependable diagnostics. The 2000-count backlit LCD display, microprocessor zero adjustment, and data hold function offer seamless operation in low-light environments.
Key Features
| Brand | Major Tech |
| Model | MT760 |
| Product Type | Clamp Meter |
| Current Range | 1mA - 100A AC/DC |
| Voltage Range | Up to 600V AC/DC |
| Capacitance Range | Up to 20mF |
| Safety Rating | CAT III 300V |
| Display | 2000 count backlit LCD |
| Clamp Size | Ø17mm |
| True RMS | Yes |
| Non-Contact Voltage Detector (NCV) | Yes |
| Variable Frequency Drive (VFC) | Yes |
| Data Hold | Yes |
| Diode Test | Yes |
| Continuity Buzzer | Yes |
| Auto Power Off | Yes |
| Weight | 0.2 kg |
Highlights
- Current measurement from 1mA
- Measures AC and DC current to 100A
- Ø17mm Cable Clamp size
- 2000 count backlit LCD display
- Measurement of DC voltage and AC voltage up to 600V
- Capacitance to 20mF
- VFC – Variable Frequency Drive voltage value
- Microprocessor Zero adjustment
- NCV – Non-Contact Voltage Detector
- Continuity buzzer and Diode Test
- Data Hold function
- Auto Power Off
How to use
Select the desired testing function using the rotary dial. For current measurements, open the 17mm clamp jaw and enclose a single conductor. Use the microprocessor zero adjustment prior to DC current measurements, and utilize the data hold button to capture readings on the backlit display.
