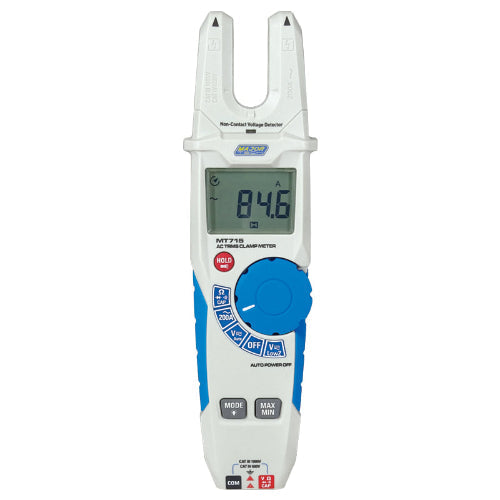

Major Tech MT715 Open Jaw Clamp Meter TRMS 200A CAT IV 600V
Major Tech MT715 Open Jaw Clamp Meter TRMS 200A CAT IV 600V
The Major Tech MT715 is a high-performance open jaw clamp meter designed for precise and safe electrical testing. Featuring True RMS measurement capabilities, it accurately measures AC current up to 200A and handles AC/DC voltages up to 1000V with a 6000-count digital display.
Equipped with a compact 16mm open jaw sensor, built-in non-contact voltage detection, and low input impedance mode to eliminate ghost voltages, this versatile tool streamlines diagnostic work in tight spaces. Essential functions like continuity testing, capacitance measurement up to 4000µF, data hold, and an integrated flashlight ensure efficient performance on any job site.
Key Features
| Brand | Major Tech |
| Model | MT715 |
| Product Type | Open Jaw Clamp Meter |
| Measurement Type | True RMS (TRMS) |
| AC Current Range | 200A AC |
| Voltage Range | Up to 1000V AC/DC |
| Safety Rating | CAT IV 600V |
| Display | 6000 Count LCD |
| Jaw Opening Size | 16 mm |
| Capacitance Range | Up to 4000 µF |
| Input Impedance | LoZ (Low Impedance) |
| Weight | 0.3 kg |
Highlights
- 6000 count LCD display
- Open Jaw Sensor
- Ø16mm Cable Clamp size
- Measures DC voltage and AC TRMS voltage up to 1000V
- Capacitance to 4000µF
- NCV – Non-Contact Voltage Detector
- Low input impedance prevents false readings due to “Ghost” voltage (LoZ)
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Min/Max and Data Hold function
- Auto Power Off
