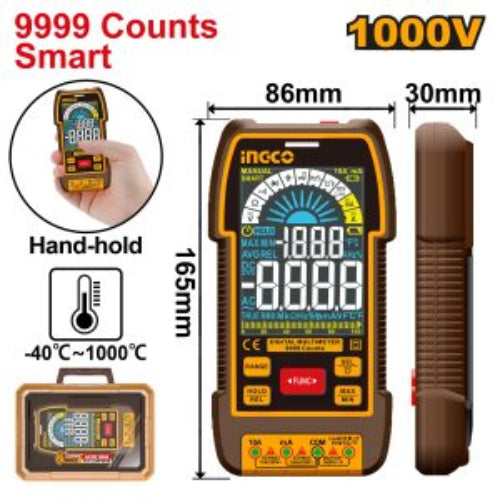

INGCO DM110004 Auto Ranging Digital Multimeter TRMS 9999 Counts
INGCO DM110004 Auto Ranging Digital Multimeter TRMS 9999 Counts
The INGCO DM110004 Auto Ranging Digital Multimeter delivers precise electrical testing with True RMS measurement and a high-visibility 9999-count VA colour display. Engineered for versatile diagnostics, it features an intelligent SMART function that automatically detects AC/DC voltage, resistance, and continuity to streamline troubleshooting.
Built with comprehensive measurement capabilities, this digital multimeter tests AC/DC current up to 10A, voltage up to 1000V DC and 750V AC, capacitance, frequency, and temperature. Added essentials such as non-contact voltage (NCV) detection, live wire testing, a built-in flashlight, and data hold ensure safe and efficient operation in any workspace.
Key Features
| Brand | INGCO |
| Model Number | DM110004 |
| Display | VA colour display screen (True RMS 9999 counts) |
| DC Voltage | 99.99mV / 999.9mV / 9.999V / 99.9V / 1000V |
| AC Voltage | 99.99mV / 999.9mV / 9.999V / 99.9V / 750V |
| DC/AC Current | 9.999mA / 99.99mA / 600mA / 10A |
| Resistance | 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ |
| Capacitance | 9.999nF / 99.99nF / 999.9uF / 9.999mF / 99.99mF |
| Frequency | 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz |
| Temperature Range | -40.0°C to 1000.0°C (-40.0°F to 1832.0°F) |
| SMART Function | AC/DC voltage, resistance, and continuity |
| Non-Contact Voltage (NCV) Detection | Yes |
| Live Wire Test | Yes |
| Diode Test | Yes |
| Data Functions | Data hold, MAX / MIN / AVG, Relative measurement |
| Flashlight | Yes |
| Power Supply | 6 x LR03 AAA batteries |
| Weight | 462 g |
Highlights
- True RMS 9999-count VA colour display for clear readings
- Intelligent SMART function for automatic voltage, resistance, and continuity detection
- Comprehensive measurement range including temperature, capacitance, frequency, and AC/DC current up to 10A
- Equipped with NCV non-contact detection, live wire test, built-in flashlight, and auto power off
What's included
- 1 x INGCO DM110004 Auto Ranging Digital Multimeter
- 6 x LR03 AAA Batteries
