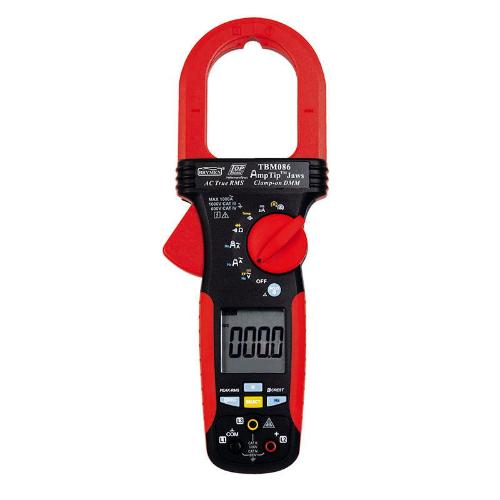

Hellermann TBM086 AC Digital Clamp Meter 1000A
Hellermann TBM086 AC Digital Clamp Meter 1000A
The Hellermann TBM086 Digital Clamp Meter is an advanced electrical testing tool engineered for measuring AC currents up to 1000A. Equipped with a large 51 mm jaw opening and Amptip™ low current range technology, it delivers high precision across varied commercial and industrial applications.
Featuring a backlit LCD display and rotary selector switch, this unit supports 3-phase rotation for mains and motors, EF detection, temperature measurement, data hold, and 80 ms peak RMS in-rush current monitoring.
Key Features
| Brand | Hellermann |
| Model | TBM086 |
| Product Type | Digital Clamp Meter |
| Current Range | 1000A AC |
| Jaw Size | 51 mm |
| Display | Large Backlit LCD |
| Weight | 248 g |
| Amptip™ Low Current Range | Yes |
| 3 Phase Rotation (Mains & Motors) | Yes |
| EF Detection | Yes |
| Temperature Measurement | Yes |
| Peak RMS In-Rush Current | 80 ms |
| Data Hold | Yes |
| Continuity | Yes |
Highlights
- Rated for AC current measurements up to 1000A
- Generous 51 mm jaw opening
- Amptip™ low current capability for fine measurements
- 3-phase rotation testing for motors and mains
- Non-contact EF detection and temperature measurement
- Clear backlit LCD screen with data hold function
